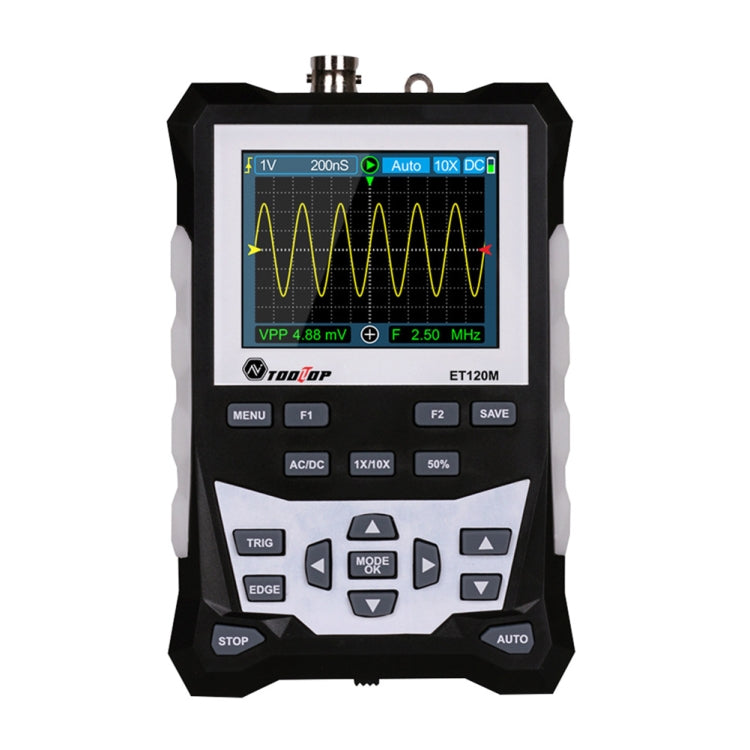

ET120M 120MHz Digital Color Simulation Oscilloscope

1. Material: ABS
2. Screen: 320 x 240 LCD screen
3. Display area: 50mm x 40mm
4. Backlight: White, 8-level brightness
5. Impedance: 1X-1Mohm/ 10X-10Mohm
6. Battery: Lithium battery
7. Automatic shutdown: no operation for 15 minutes

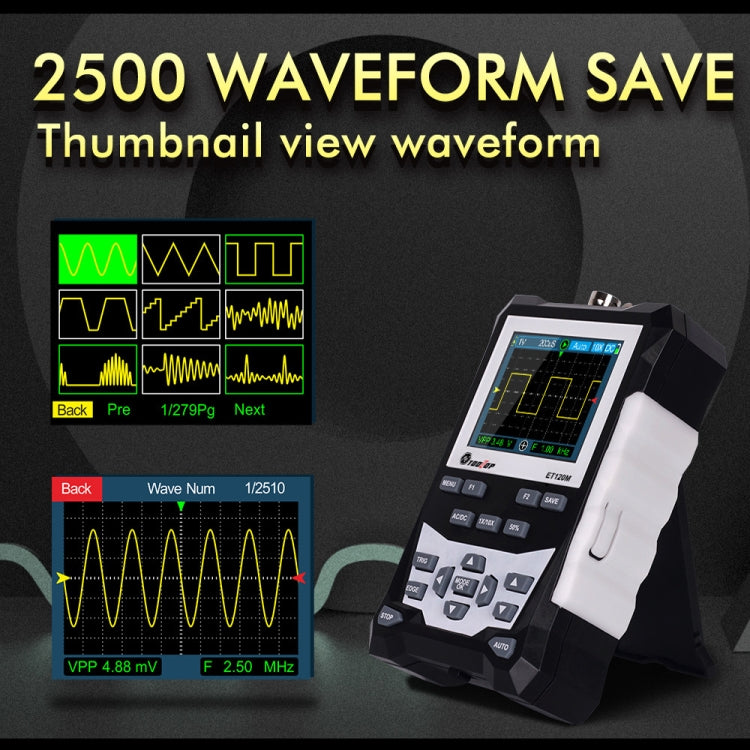

8. Save: 2500 DSO waveforms
9. Dimensions: 124 x 80 x 35 (mm)
10. Weight: about 180g
11. Use conditions: 0 to +40 degrees Celsius; less than 75%RH

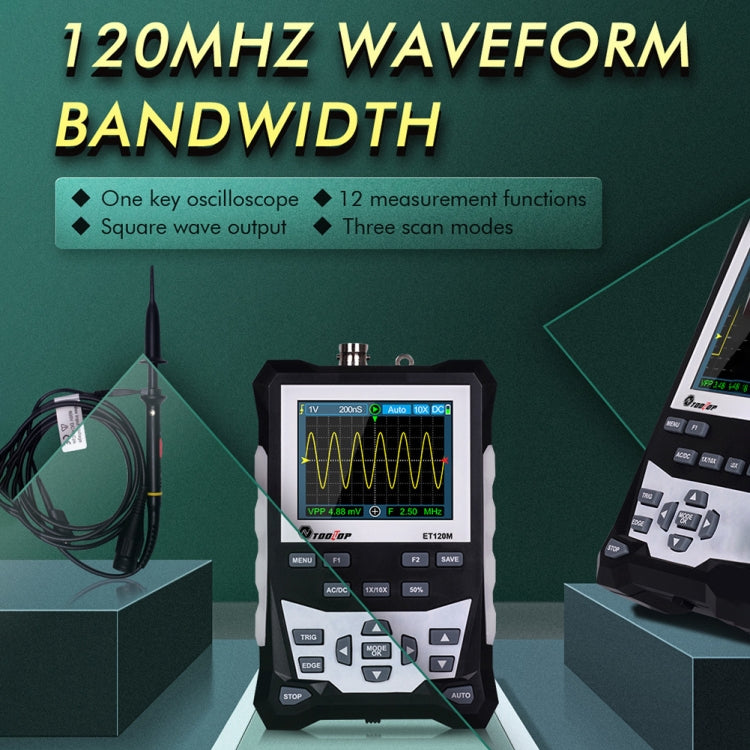

12. Waveform bandwidth: 120MHz
13. Number of channels: 1
14. Voltage: 1X: 80 Vpp 10X: 800 Vpp
15. Coupling: DC/AC
16. Signal output: 1KH, 10KHz, 100KH+z, 1MHz
17. Voltage accuracy: 10%
18. Frequency accuracy: 1%
19. Storage depth: 12.8div
20. Input impedance: 1MΩ
21. Vertical sensitivity: 50mV~100v

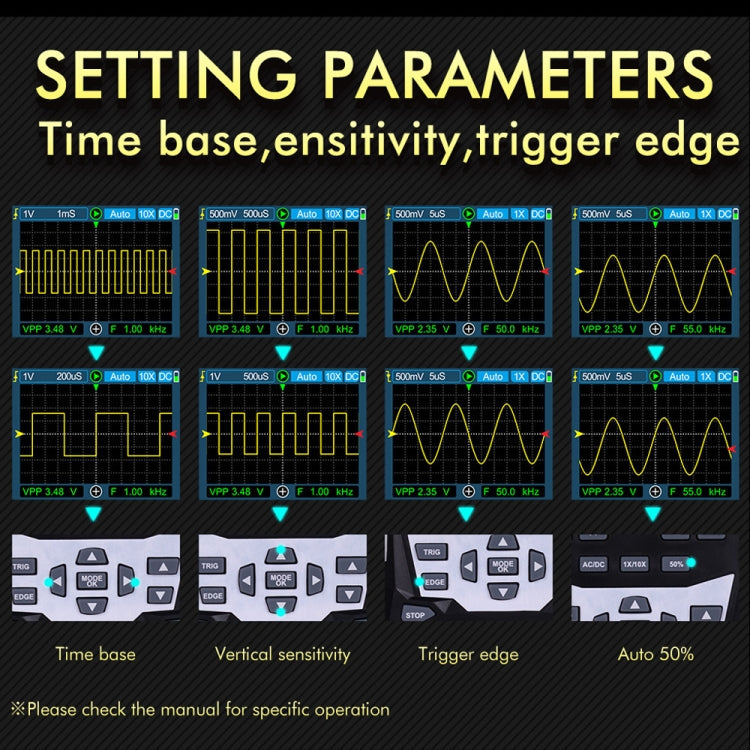

22. Time base range: 6nS～50S
23. Trigger Mode: Auto/Normal/Single
24. Trigger slope: rise/fall
25. Charging: DC5V/1A/2A
26. Sampling rate: 500MSps (MAX)
27. Automatic measurement function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du-
28. Applicable occasions: home appliance inspection, automobile diagnosis, scientific research and education, product development, equipment debugging
